| Verkaufseinheiten: | Set/Sets |
|---|---|
| Pakettyp: | Holzhülle Packung |
| Bildbeispiel: |
|
Verpakung: Holzhülle Packung
Transport: Ocean,Land
Ort Von Zukunft: CHINA
Hafen: SHANGHAI,QINGDAO,LIANYUNGANG
Zahlungsart: L/C,T/T
Incoterm: FOB,CIF,EXW
【 Mal neuer Roman】
|

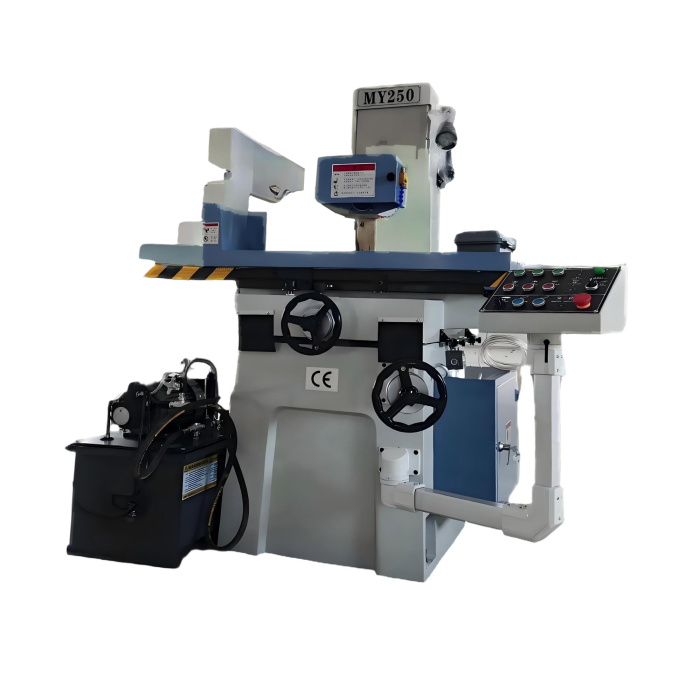

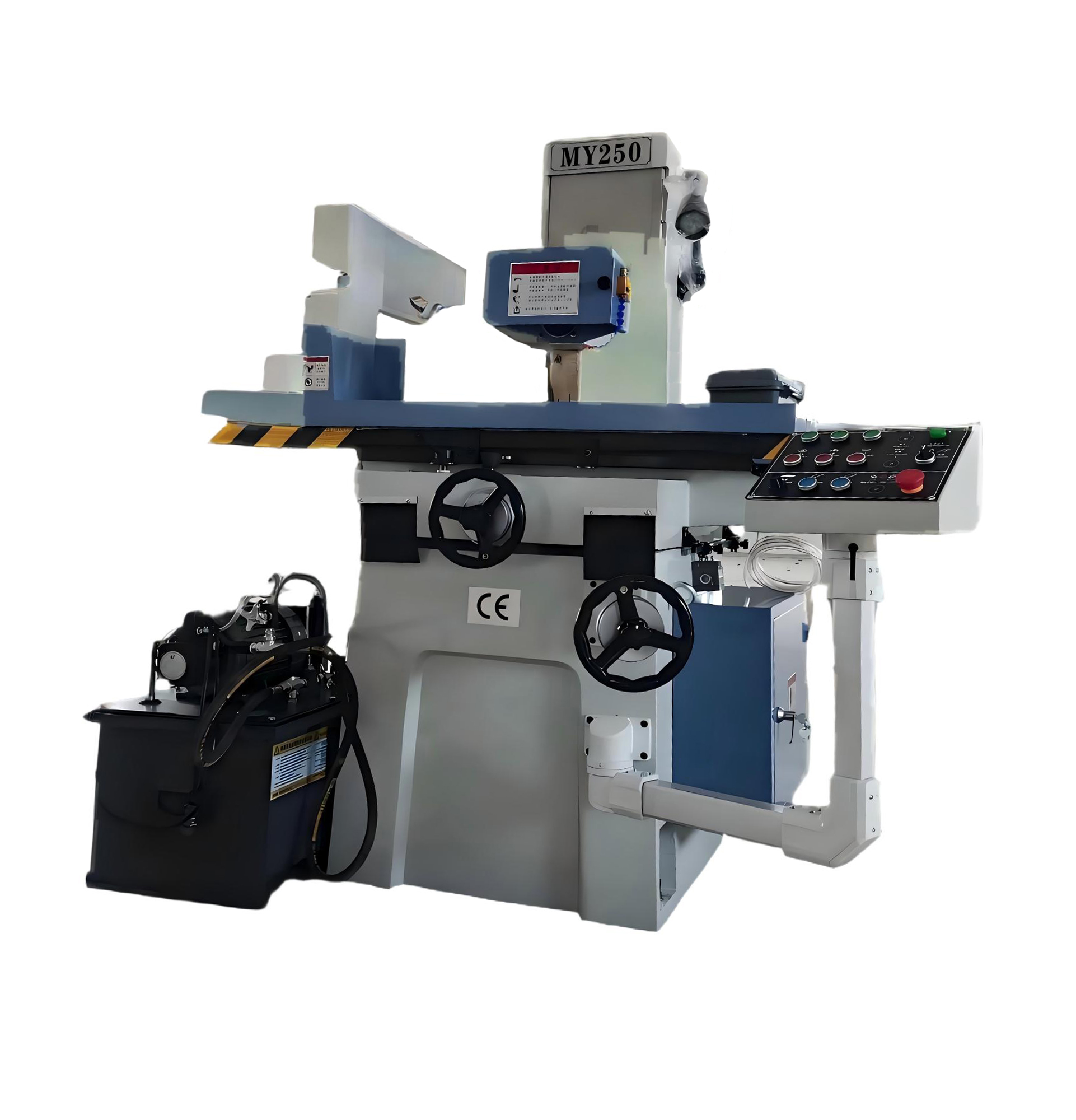

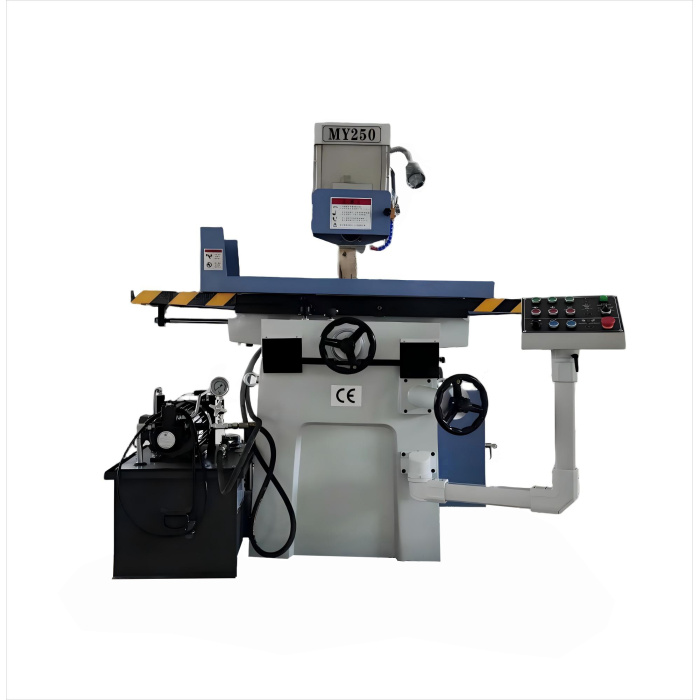

Type number |
MY250 |
|||
|
workbench
|
Table size (length × width) |
mm |
500×250 |
|
|
|
Maximum stroke of table (length × width) |
mm |
560×260 |
|
|
|
Table T-slot (slot number x slot width) |
mm |
1×14 |
|
|
Grinding head
|
Distance from center line of sand wheel shaft to work table |
mm |
450 |
|
|
|
Grinding wheel size (outer diameter × width × inner diameter) |
mm |
200*20*31.75 |
|
|
200 |
Grinding wheel speed |
50HZ |
r/min |
2850 |
|
|
|
60HZ |
|
3360 |
|
Feed quantity |
Table longitudinal (left and right) speed (non-polar) |
m/min |
3-20 |
|
|
|
Lateral (front and rear) feed of table
|
continuous |
mm/min |
600 |
|
|
|
intermittent |
mm/time |
0-5 |
|
|
|
Hand wheel every turn |
mm |
5.0 |
|
|
|
Hand wheel per cell |
mm |
0.02 |
|
|
Vertical (up and down) hand wheel feed |
Hand wheel every turn |
mm |
2.0 |
|
|
|
Hand wheel per cell |
mm |
0.01 |
|
|
Up and down fast speed (approximate) |
mm/min |
－ |
|
|
Motor power
|
Spindle motor |
kw |
1.5 |
|
|
|
Cooling machine |
W |
40 |
|
|
|
Elevating motor |
W |
－ |
|
|
Oil pressure system
|
Hydraulic motor |
kw |
1.5 |
|
|
|
Working pressure |
Mpa |
3 |
|
|
|
Tank capacity |
L |
80 |
|
|
|
Maximum discharge |
L/min |
18 |
|
|
Working accuracy |
Parallelism of the machined surface to the base surface |
mm |
300:0.005 |
|
|
|
Surface roughness |
μm |
Ra0.32 |
|
|
Net/gross weight |
kg |
950/1050 |
||
|
Standard sucker (permanent magnet sucker) |
mm |
250×500 |
||
|
Overall dimensions (L × W × H) |
mm |
1680x1220x1720 |
||
|
Packing box size (L × W × H) |
mm |
1630x1290x1940 |
||
【 Konfigurationsbeschreibung】
|
disposition |
Brand manufacturer |
remark |
|
Machine tool spindle |
Homemade, the company through 5 processes of processing |
Lathe roughing, then tempering, lathe finishing, high-frequency tempering, cylindrical grinding machine finishing |
|
Lead screw |
self-restrained |
After years of technical transformation of skilled workers, the knife cannot be dropped |
|
motor |
Nantong Guanshun motor |
Jiangsu famous brand |
|
Permanent magnet chuck |
Nantong Xinci |
Jiangsu famous brand |
|
Bed rail and column rail |
All adopt gantry guide grinding and water linear grinding processing, accuracy and durability are improved |
|
|
Machine tool casting |
Nantong, Jiangsu, are standard T250 material |
|
【 Standardzubehör】
|
Product name |
quantity |
Product name |
quantity |
|
Surface grinding machine |
1 |
Balance stand |
1 |
|
Toolbox |
1 |
Balance frame mandrel |
1 |
|
Flange wrench |
1 |
Axis of balance |
1 |
|
A Phillips screwdriver |
1 |
Grinding wheel corrector |
1 |
|
Open end wrench 12 x 14 |
1 |
Gold fountain pen |
1 |
|
Open end wrench 17 x 19 |
1 |
Grinding wheel and grinding wheel clamp |
1 |
|
Open end wrench 19 x 22 |
1 |
The drain pipe |
1 |
|
Allen wrench 3 |
1 |
Flush the wire tube |
1 |
|
Allen wrench 4 |
1 |
Floor mat |
3 |
|
Allen wrench 5 |
1 |
Foot screw |
3 |
|
Allen wrench 6 |
1 |
cistern |
1 |
|
Allen wrench 8 |
1 |
Permanent magnet chuck 500*250 |
1 |
|
|
|
|
|
