| Verkaufseinheiten: | Set/Sets |
|---|---|
| Pakettyp: | Holzhülle Packung |
| Bildbeispiel: |
|
Verpakung: Holzhülle Packung
Transport: Ocean,Land
Ort Von Zukunft: CHINA
Hafen: SHANGHAI,QINGDAO,LIANYUNGANG
Zahlungsart: L/C,T/T
Incoterm: FOB,CIF,EXW

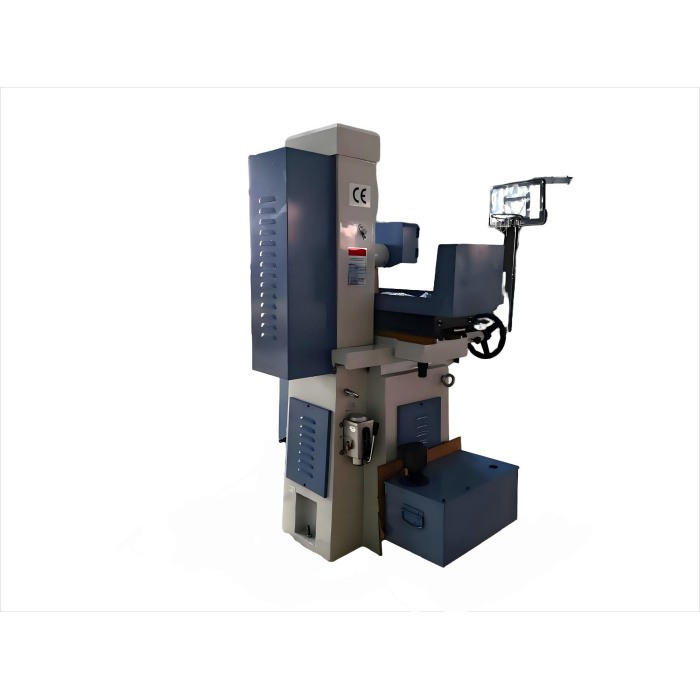

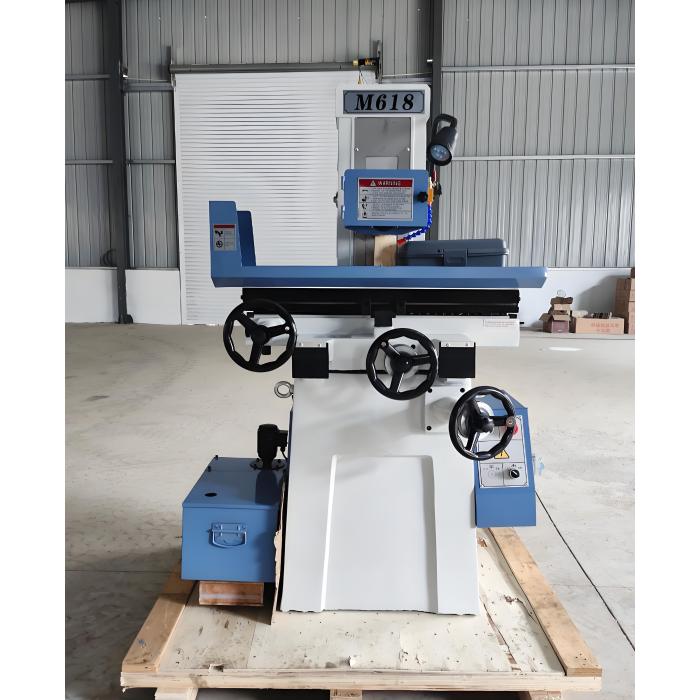

Guokeng Intelligent Technology Maschinenmaschine Co., Ltd. ist eine Sammlung von Werkzeugmaschinenproduktion und -verkäufe, Werkzeugmaschinenzubehör und Zubehör, Verkaufsmaschinenwartung und Transformation als eines der integrierten Unternehmen. Das Unternehmen verfügt über eine eigene Marke von CNC -Drehmaschine, Bearbeitungszentren, Sägemaschine, Bohrmaschine, Schleifmaschinen, Metallformmaschinenmaschinen, spezielle Maschinenanpassungen und andere vollständige Reihe von Werkzeugmaschinenprodukten.
【Produktbeschreibung】

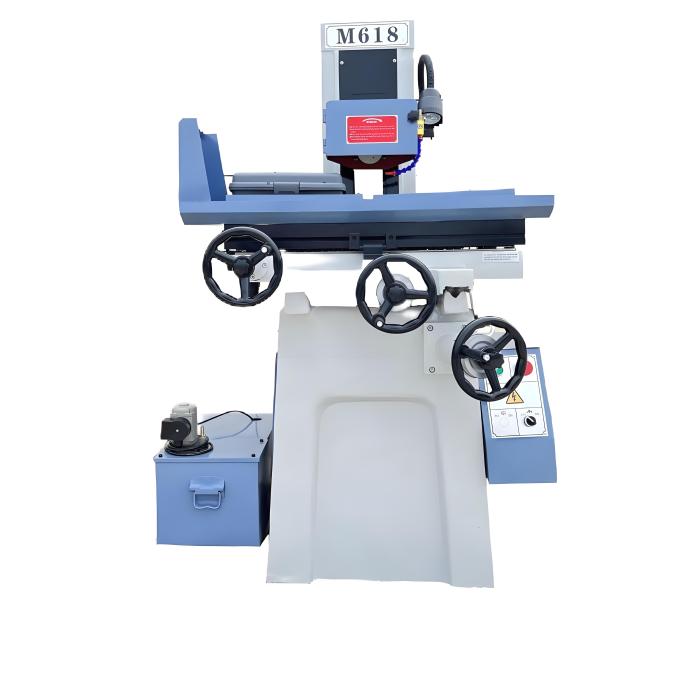

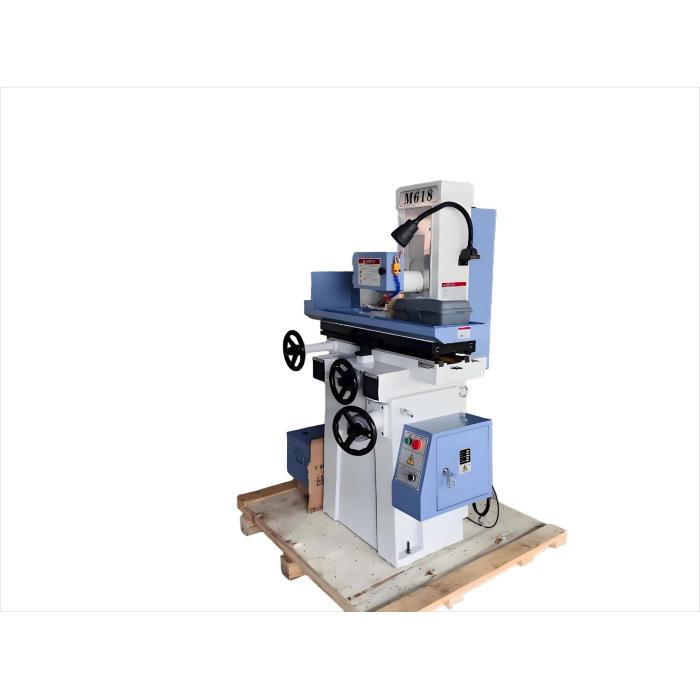

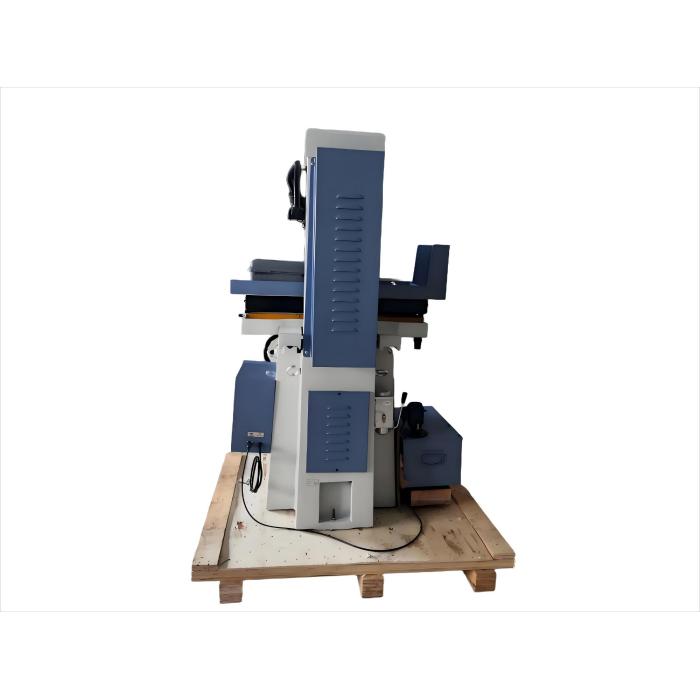

1. Die Maschine hat eine angemessene Struktur, eine gute Starrheit, ein schönes Aussehen und einen einfachen Betrieb.
2, Die Longitudinal Guide Rail des Tisches nimmt Stahlkugel Rolling Guide Rail, synchrones Gürtelgetriebe, Licht und flexibel an.
【 Technischer Parameter】
|
Technical specification |
Unit |
M618 |
|
|
Maximum stroke of table (length × width) |
mm |
490×180 |
|
|
Maximum distance from table to spindle center |
mm |
335 |
|
|
Table slide |
|
Steel ball V flat rail |
|
|
Maximum capacity of table |
Kg |
200 |
|
|
Table size (length × width) |
mm |
450×150 |
|
|
Table T-slot |
mm×n |
14×1 |
|
|
Hand wheel feed quantity |
mm |
0.02/ grid 4.0/ circle |
|
|
Feed quantity of upper and lower handwheel |
mm |
0.01/ cell 2.0/ circle |
|
|
Grinding wheel size (outer diameter × width × inner diameter) |
mm |
￠180×13×￠31.75 |
|
|
Spindle speed |
50Hz |
rpm |
2850 |
|
Spindle motor |
Kw |
1.1 |
|
|
Cooling pump |
Kw |
0.4 |
|
|
Overall dimensions of the machine (L × W × H) |
mm |
1550×1150×1590 |
|
|
Packing box size (L × W × H) |
mm |
1000×1150×1760 |
|
|
Gross weight, net weight |
T |
O.75、 0.65 |
|
【 Konfigurationsbeschreibung 】
|
disposition |
Brand manufacturer |
remark |
|
Machine tool spindle |
Homemade, the company through 5 processes of processing |
Lathe roughing, then tempering, lathe finishing, high-frequency tempering, cylindrical grinding machine finishing |
|
Lead screw |
self-restrained |
After years of technical transformation of skilled workers, the knife cannot be dropped |
|
motor |
Nantong Guanshun motor |
Jiangsu famous brand |
|
Permanent magnet chuck |
Nantong Xinci |
Jiangsu famous brand |
|
Bed rail and column rail |
All adopt gantry guide grinding and water linear grinding processing, accuracy and durability are improved |
|
|
Machine tool casting |
Nantong, Jiangsu, are standard T250 material |
|
【 Standardzubehör】
|
Product name |
quantity |
Product name |
quantity |
|
Surface grinding machine |
1 |
Balance stand |
1 |
|
Toolbox |
1 |
Balance frame mandrel |
1 |
|
Flange wrench |
1 |
Axis of balance |
1 |
|
A Phillips screwdriver |
1 |
Grinding wheel corrector |
1 |
|
Open end wrench 12 x 14 |
1 |
Gold fountain pen |
1 |
|
Open end wrench 17 x 19 |
1 |
Grinding wheel and grinding wheel clamp |
1 |
|
Open end wrench 19 x 22 |
1 |
The drain pipe |
1 |
|
Allen wrench 3 |
1 |
Flush the wire tube |
1 |
|
Allen wrench 4 |
1 |
Floor mat |
3 |
|
Allen wrench 5 |
1 |
Foot screw |
3 |
|
Allen wrench 6 |
1 |
cistern |
1 |
|
Allen wrench 8 |
1 |
Permanent magnet sucker 400*150 |
1 |
